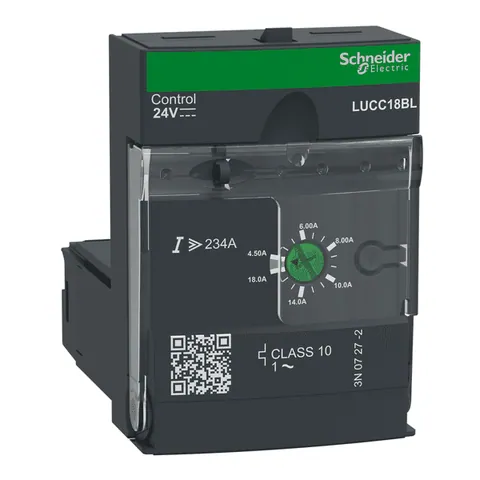

Schneider Electric LUCC18BL
Advanced control unit, TeSys Ultra, 4.5A to 18A, 1P motors, protection & diagnostic, class 10, coil 24VDC
1 / 1
Manufacturer catalogue image
Product Description
Lifecycle Status:
TeSys U control and diagnostic unit to be inserted in advanced power bases LUB320, LUB380 to form a TeSys U starter controller, for 1-phase motor applications up to 4kW@400V. It provides full protection to motors with a rated current Ir 4.5-18A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). For diagnostics, it provides a thermal overload alarm to be managed with an additional function module (to be ordered separately) and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Need more information?
Call us at:+48 17 778 34 19
Payment methods:
Offer details
- Offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees - Availability:
- On requestLead time: 21 days
- Warranty:
- Not specified
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Ambient Air Temperature For Operation
- -25-70 °C
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6
- Immunity To Microbreaks
- 3 ms
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
