Honeywell
V5862A3037

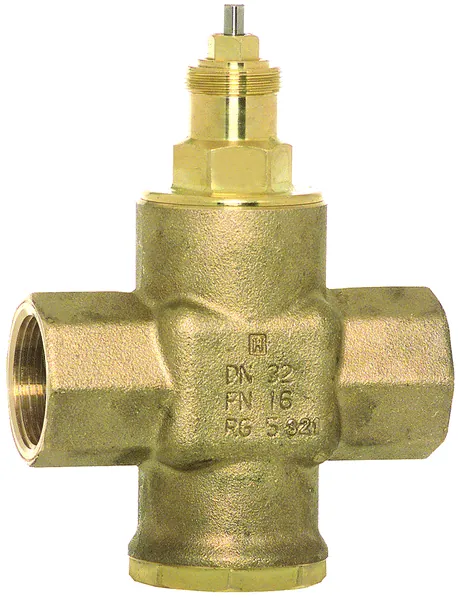

Zone Valves, 1 1/4 in 2-way NPT Valve
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Additional Information
- Part Number
- V5862A3037
Specifications
- Valve Plug Material
- Brass
- Valve Stem Travel
- 0.25 in ; 6.4 mm
- Valve Stem Material
- Stainless Steel
- Valve Stem Action
- Stem up to close
- Valve Cartridge Material
- Brass- stainless steel
- Valve Cartridge
- Yes
- Media Restrictions
- Not for use with steam or fuels
- Maximum Operating Pressure
- 235 psi ; 1620 kPa
- Maximum Differential Pressure
- 174 psi ; 1200 kPa
- Leakage
- ANSI Class III (less than 0.02% of Cv)
- For Use With
- M6435A3000 ; M7410F3006 ; M7435F3007
- Actuator Type
- Electric
- Controlled Media
- Chilled or hot water- up to 50% glycol
- Valve Body Material
- Brass
- Valve Flow Characteristic
- Linear
- Pipe Connection Type
- Female NPT
- Pipe Connection Size
- 1.25 in ; 32 DN
- Valve Body Pattern
- 2-way
- Flow Coefficient
- 18 CV ; 15.6 Kvs
