Schneider Electric GV4P50N
Motor circuit breaker, TeSys GV4, 3P, 50A, Icu 50kA, thermal magnetic, Everlink terminals
1 / 1

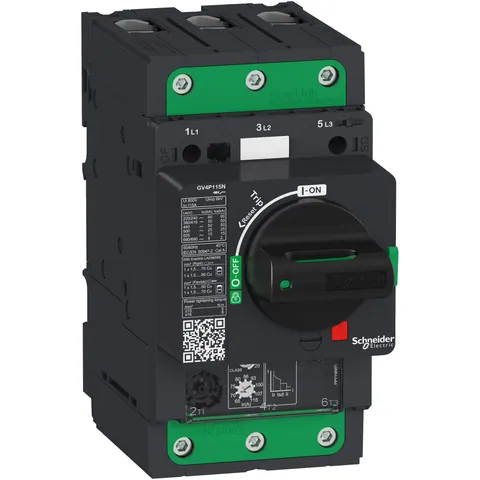

Manufacturer catalogue image
Product Description
Lifecycle Status:
The Schneider Electric TeSys GV4 Motor Circuit Breaker is a robust solution designed to protect 3-phase motors with a rating of up to 11-22kW at 400V. This circuit breaker offers thermal magnetic protection and additional motor protection functions, ensuring optimal safety and performance.
With a breaking capacity of Icu 50kA at 400V, this circuit breaker provides reliable protection against overcurrents. The start-stop control is facilitated by a rotary handle, while the connection is made using Everlink BTR screw terminals for easy installation and maintenance.
The thermal protection can be adjusted with dials, offering a setting current Ir in the range of 20-50A and a selectable tripping class of either 10 or 20. The magnetic protection is set at 17 In. Additional protections include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, and ground fault protection.
This circuit breaker also features auxiliary contact blocks (OF, SD) and voltage trip units (MN, MX), making internal locations available for additional accessories. It is multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX) and complies with Green Premium standards (RoHS/REACh).
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Product Certifications
- IEC || UL || CSA || CCC || EAC || ATEX || EU-RO MR
- Ik Degree Of Protection
- IK07 IEC 62262
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- CSA C22.2 No 60947-4-1 || UL 60947-4-1 || EN/IEC 60947-4-1 || EN/IEC 60947-2
- Climatic Withstand
- IACS E10
- Pollution Degree
- 3
Available Offers
(4)
Schneider Electric
- Available:
- 0 pcs.On RequestUpdated at: 11-09-2026
- Offer from:
Trusted supplier — Germany, member since 2024
Schneider Electric
- Available:
- 0 pcs.On RequestUpdated at: 14-09-2026
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees- Warranty:
- 12 months
Access our platform to find more offers
Register now to explore 36 mln offers from verified suppliers worldwide.
- Compare offers globally
- Direct supplier contact
- RFQs, Quotes, and Orders
- BOM Search
Sign UpFree 14-day trial available
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Schneider Electric GV4P50N, including specifications and features.
Download Data Sheet
TracePartsCAD Models
3D CAD model and technical drawings, ready for your design software.
Download CAD Model
